Solid-lubricating Bearings

Profile

Self-lubricating bearings ate used where the beadng is working without lubricant or with marginal lubricant during operation Our focus is on ensunng that the bearing gives the best performance and the longest life under vanous conditions The working principle of self-lubricating bearings is that dunng the initial run-in period of the bearing, there will be a solid lubricating film created by the transference of a small amount of material from the bearing layer which is in direct contact between the moving parts and this layer will protect and lubricate the mating components, thus extending the service life of the bearing and shaft.

Feature

Modern designs place enormous demands on today's self- lubricating beanng materials.requires free maintenance operating even under severe environment and extremely load conditions Moreover, the constant pressure on costs request for increasing machine and plant availability without any loss of reliability. The metallic self-lubricating bearing materials developed by SLT carl meet the maintenance-free as well as self-lubncated at long-term operating,which makes the design of reliable long-term self-lubricating system possible SLT metallic self-lubdcating bearing materials can be applied to a wide range of low-speed high-load conditions like the rotating, swing and straight-line reciprocating motion: Meanwhile, this kind bearing materials are suitable for the tradition lubdcation cannot given or prohibited occasion, or in special conditions such as dust, radiation, impact Ioad but required the use of long-term and stability.

  • Material Structure
  • Alloy Material
  • Material Composition
  • Solid Lubricants
  • Application
a

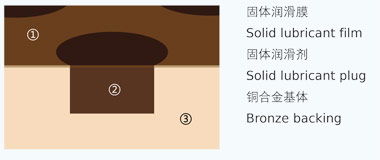

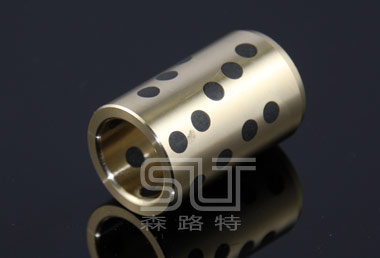

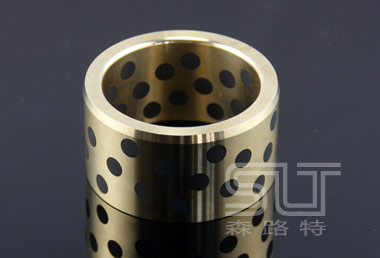

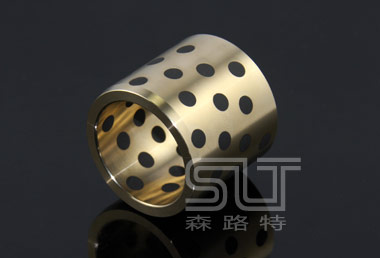

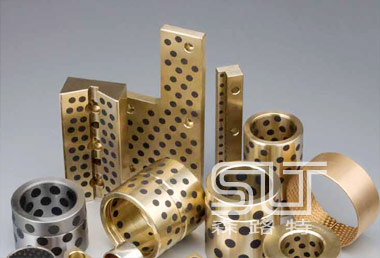

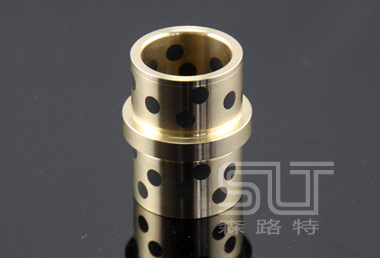

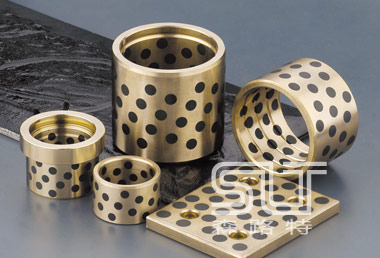

JDB materials consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubhcant can be formation of low friction nIm Under technical dry running conditions. The bearing surface is designed with thick running-in film which enables the solid lubricant to be transfened to the counter materiaI at the first contact.

Type SLT-JDB-1 SLT-JDB-2 SLT-JDB-3 SLT-JDB-4 SLT-JDB-5
China Brands
GB1776-87
ZCuZn25
AL6Fe3Mn3
ZCuSn6Zn6Pb3 ZCuAL10Fe3 ZCuSu10P1 Steel+
ZCuSn6Zn6Pb3
HT250 GCr15
Intemational
ISO1338
GCuZn25
AL6Fe3Mn3
GCuSn6Zn6Pb3 GCuAL10Fe3 - Steel+
CuSn6Zn6Pb3Fe3Ni5
- B1
Germany
DIN
G-CuZn25
AL5
GB-CuSn5Zn5Pb5 GB-CuAL10Ni GB-CuSn10 Steel+
CuSn6Zn6Pb3Ni
- 100Cr6
Japan
JIS
HBsC4 BC6 ALBC3 BC3 BC6 FC250 SUJ2
America
ASTM/UNS
C86300 C83600 C95500 C90500 C83600 Class40 52100
England Standard
BS
HTB2 LG2 AB1 PB4 LG2 - -
Grade JDB-1 JDB-2 JDB-22 JDB-23 JDB-24 JDB-25 JDB-15
Material   CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn10Pb1 CuSn7ZnPb CuSn12Pb CuZn25Al5Mn4Fe3
Density   8 8.9 7.8 8.9 8.8 8.9 8
Hardness   > 210 > 70 > 140 > 80 > 75 > 95 > 250
Tensile strength N/mm > 750 > 200 > 600 > 330 > 270 > 260 > 800
Yield strenght N/mm2 > 450 > 90 > 260 > 170 > 130 > 150 > 450%
Elongation % > 12 > 15 > 10 > 6 > 16 > 10 > 8
Coefficient of linear expansion   1.9X10-5/℃ 1.8X10-5/℃ 1.6X10-5/℃ 1.8X10-5/℃ 1.8X10-5/℃ 1.8X10-5/℃ 1.9X10-5/℃
Max.temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+400 -40~+400 -40~+150
Max.load N/mm2 100 60 50 70 70 70 120
Max.speed (Dry0) m/min 15 10 20 10 10 10 15
Max.PV(Lubrication) N/mm2 *m/min 200 60 60 80 60 80 200
Compression deformation 300N/mm2 < 0.01mm < 0.05mm < 0.04mm < 0.05mm < 0.05mm < 0.05mm < 0.005mm
Lubricant Features Typical application
SL1
Graphite+add
Excellent resistance against cheemical attacks and low friction. Temp limit 400℃ Sutie for general machines and under atmosphere
SL4
PTFE+add
lowest in friction and good of water lubrication,Temp. limit 300℃ Ship, hydraulic turbine,gas turbine etc. PTFE+add
  1. Heavy-duty and low-speed mechanism. Such as the hinge bearings, accidental gate bearings and turbine bearings for dam gates, etc.
  2. Suitable to be used in high-temperature circum-stances, such as steel works, metallurgical equipment, rolling machines, conveying rollers, high-temperature blowers and baking furnaces, etc.
  3. Suitable to be used in automobile industry, stamped molds of coven, assembly streamlines and conveying belts, etc.
  4. Other industrial bearings, such as engineering machineries, plastic jet machines, various high-precision molds, etc. The product is also suitable for applications where corrosion resistance and submerging in water takes place, or heavy-duty and low-speed functioning where oiling is impossible to conduct. For instance, the chemicai machineries, foodstuff machineries, papermaking machineries and textile printing and dyeing machineries.
a

Dimension

JSB Bush Without Flange

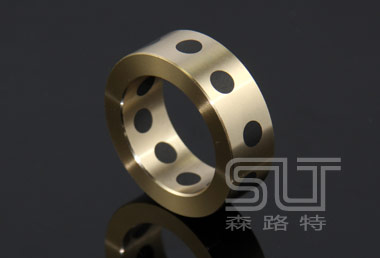

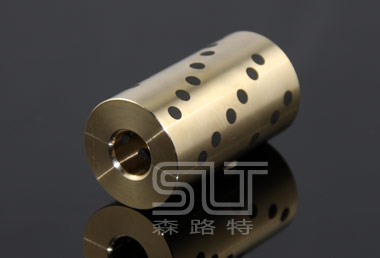

JDB - Bush Without Flange

001

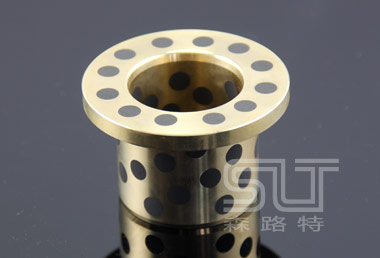

JFB - Bush with flange

001

JTW - Washers

001

JSP- Sliding plate

001

JSL - L-type bar
